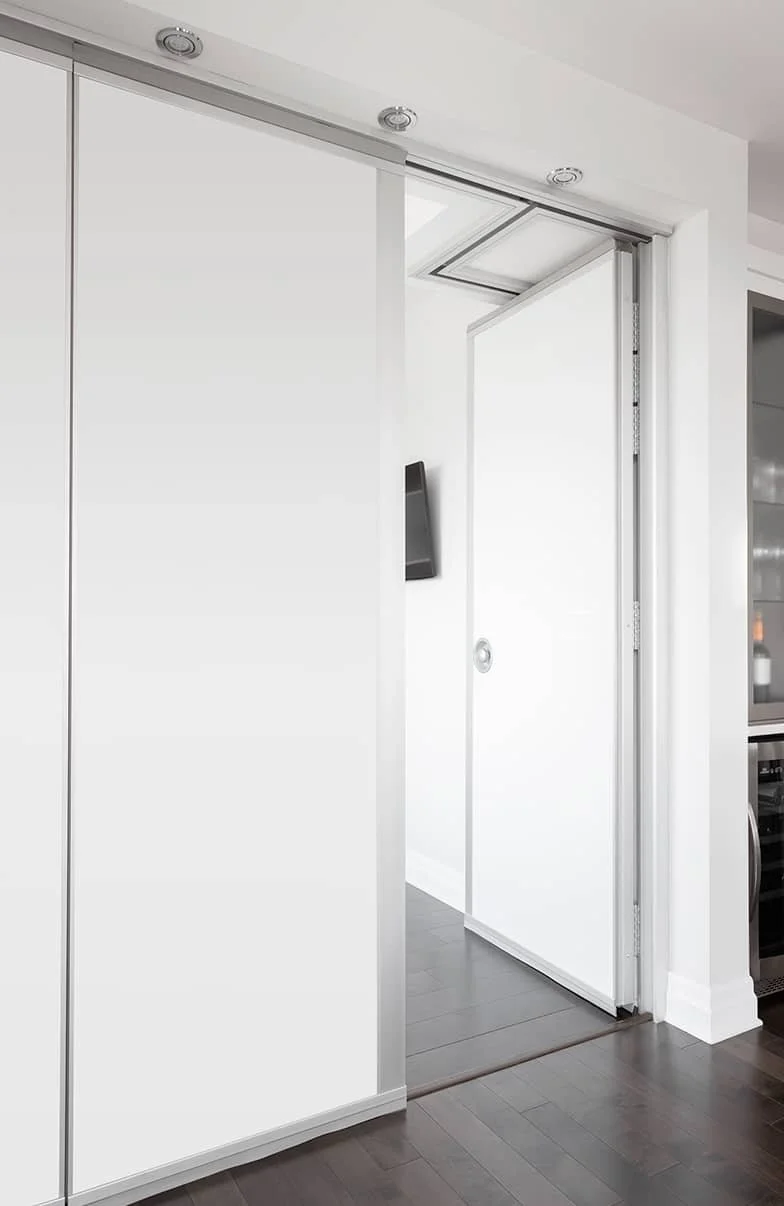

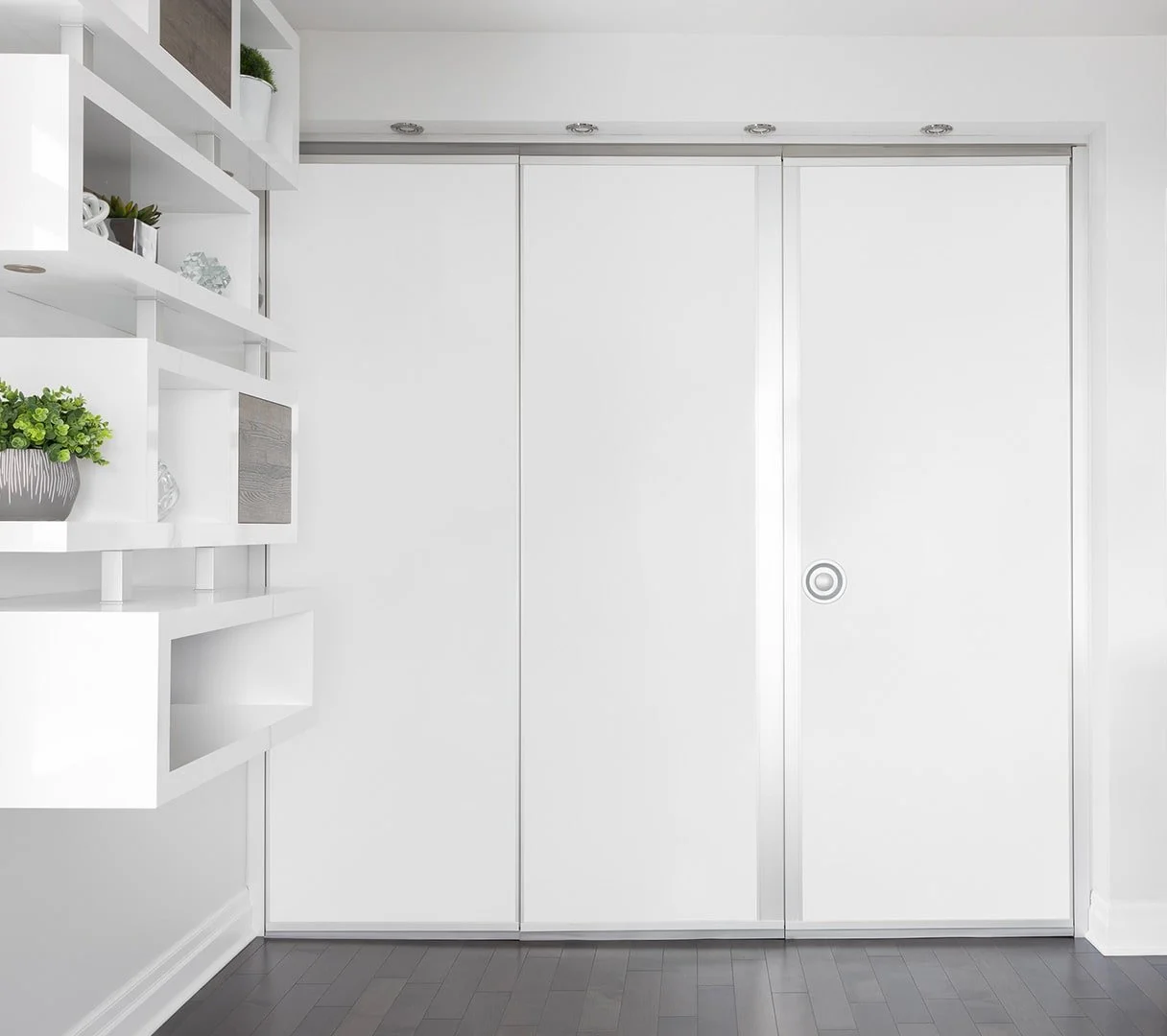

CORFLEX - 4000 series - Acoustic movable partitions with aluminum frames

Lightweight and distinguished structure

Available in individual assembly (4600) or in pair (4500), the 4000 Series movable partitions are distinguished by their very discreet aluminum framing and the possibility of integrating a distinctive hardware for a sleek design of superior quality.

CORFLEX - 4500 and 4600 series

Characteristics:

  • Very thin anodized aluminum framing

  • Top supported system

  • No floor track

  • Available STC rating : 34 or 47

  • Architectural lever handle (optional with hinged door)

  • Panic bar (optional with hinged door)

  • Retractable lower seals (optional)

Maximum height per panel

3658mm (12′) without intermediate door

3048mm (10′) with intermediate door (Doesn’t apply on the 4500 series)

Maximum width per panel

1219 mm (4 ft)

System weight

34 STC : 23.9 kg/m² (4.9 lbs/sq.ft.)
47 STC : 34.7 kg/m² (7.1 lbs/sq.ft.)

Top and bottom seals

Flexible sound seals

Properties
